Cell-cell communication mediated by secreted proteins from scRNA-Seq data

This tutorial demonstrates how to infer secreted protein-mediated cell-cell communication (CCC) from scRNA-seq data. This analysis requires an scRNA-seq dataset with two distinct conditions. SecAct employs two key criteria to identify condition-specific cell-cell communication mediated by a particular secreted protein: (1) upregulated gene expression of the secreted protein in one cell type (defined the source cell type), and (2) increased signaling activity of the same secreted protein in another cell type (defined the receiver cell type). For this demonstration, we employ an ovarian cancer (OV) scRNA-Seq study containing samples from both primary and metastatic sites.

Prepare expression matrix

The OV scRNA-Seq data is stored in a Seurat object. The information of cell-type annotations and anatomical sites are stored in the columns MyCellType and Groups of meta.data from this Seurat object, respectively. Users can easily access them using the following code.

library(SecAct)
library(Seurat)

# download data from https://hpc.nih.gov/~Jiang_Lab/SecAct_Package/OV_scRNAseq_Seurat.rds
# load scRNA-Seq data
Seurat_obj <- readRDS("OV_scRNAseq_Seurat.rds")

# cell count
table(Seurat_obj@meta.data[,"Groups"])

## Metastatic    Primary
##      18746      17589

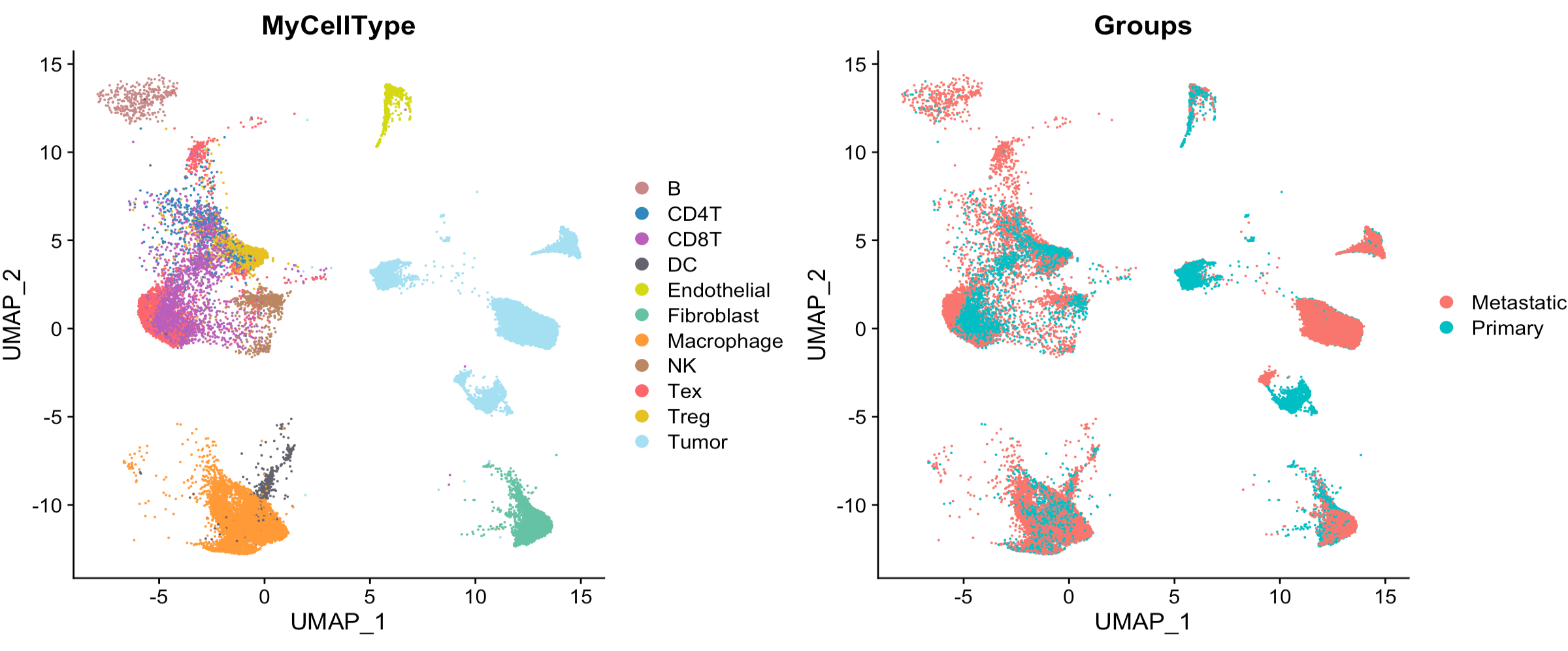

# show UMAP plot
my_cols <- c(
    'B'='#C88888','CD4T'='#3288bd','CD8T'='#B95FBB','DC'='#63636d',
    'Endothelial'='#D4D915','Fibroblast'='#66c2a5','Macrophage'='#ff9a36',
    'NK'='#bb8761','Tex'='#fe666d','Treg'='#E6C122','Tumor'='#A4DFF2'
)

p1 <- DimPlot(Seurat_obj, reduction = "umap", cols = my_cols, group.by = "MyCellType")
p2 <- DimPlot(Seurat_obj, reduction = "umap", group.by = "Groups")

p1+p2

Infer cell-cell communication

SecAct performs three steps to infer condition-specific cell-cell communication mediated by secreted proteins: (1) assessing changes in secreted protein expression for each cell type (defined the source cell type) between two conditions (e.g., Metastatic vs Primary), (2) calculating changes in secreted protein signaling activity for each cell type (defined the receiver cell type) between two conditions, and (3) linking source and receiver cell types.

When running SecAct.CCC.scRNAseq, user need to assign the cellType_meta and condition_meta with the column names of cell-type annotation and condition information in Seurat_obj@meta.data, respectively. Also, claim what case and control conditions are by conditionCase and conditionControl. User can find the SecAct results in Seurat_obj @misc $SecAct_output.

# infer CCC; ~2 mins
Seurat_obj <- SecAct.CCC.scRNAseq(
  Seurat_obj,
  cellType_meta="MyCellType",
  condition_meta="Groups",
  conditionCase="Metastatic",
  conditionControl="Primary"
)

# show output
names(Seurat_obj @misc $SecAct_output)

## [1] "SecretedProteinExpression"
## [2] "SecretedProteinActivity"
## [3] "SecretedProteinCCC"

# cell-cell communication results
head(Seurat_obj @misc $SecAct_output $SecretedProteinCCC)

This table lists metastasis-specific cell–cell communication events mediated by secreted proteins. Each row represents one interaction, indicating that the corresponding secreted protein shows upregulated expression in the sender cell type and increased signaling activity in the receiver cell type under metastatic compared with primary conditions.

Visualize cell-cell communication

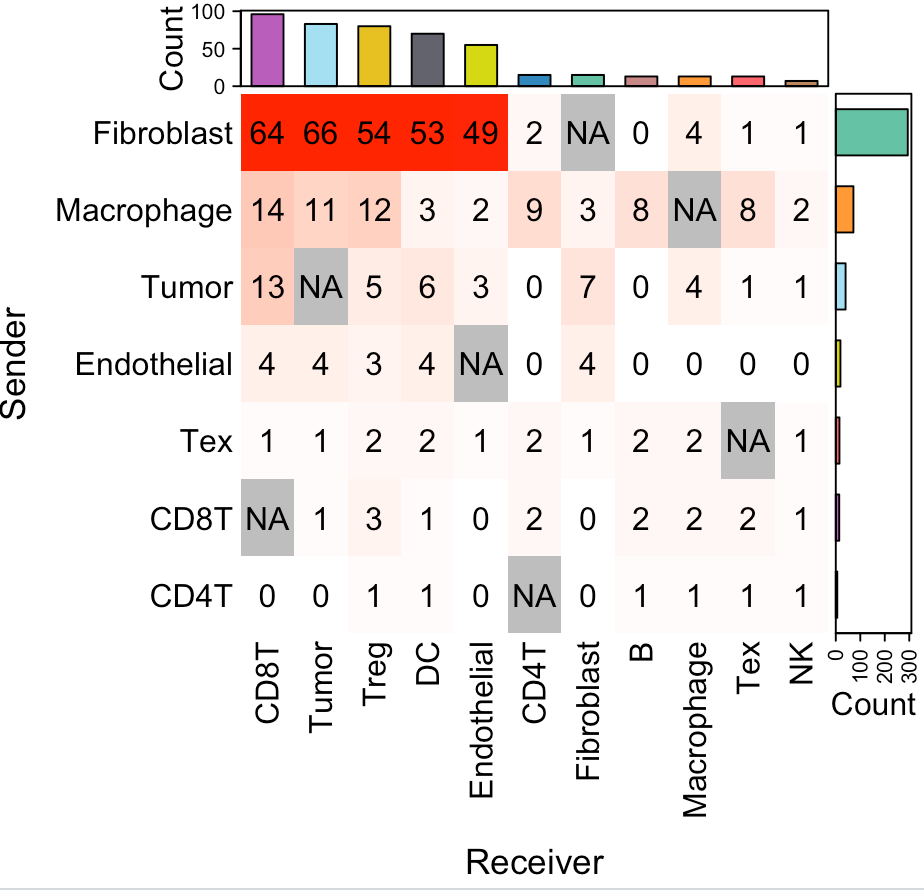

We provide two types of visualization plot for cell-cell communication, i.e., heatmap and circle plot. The number in the heatmap represents the count of secreted proteins from senders to receivers.

SecAct.CCC.heatmap(Seurat_obj, row.sorted=TRUE, column.sorted=TRUE, colors_cellType=my_cols)

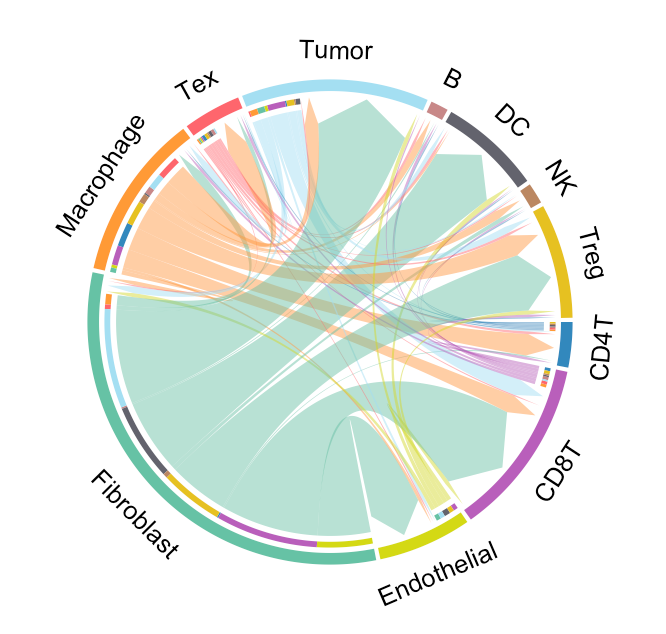

SecAct.CCC.circle(Seurat_obj, colors_cellType=my_cols)

Visualize secreted signaling flow

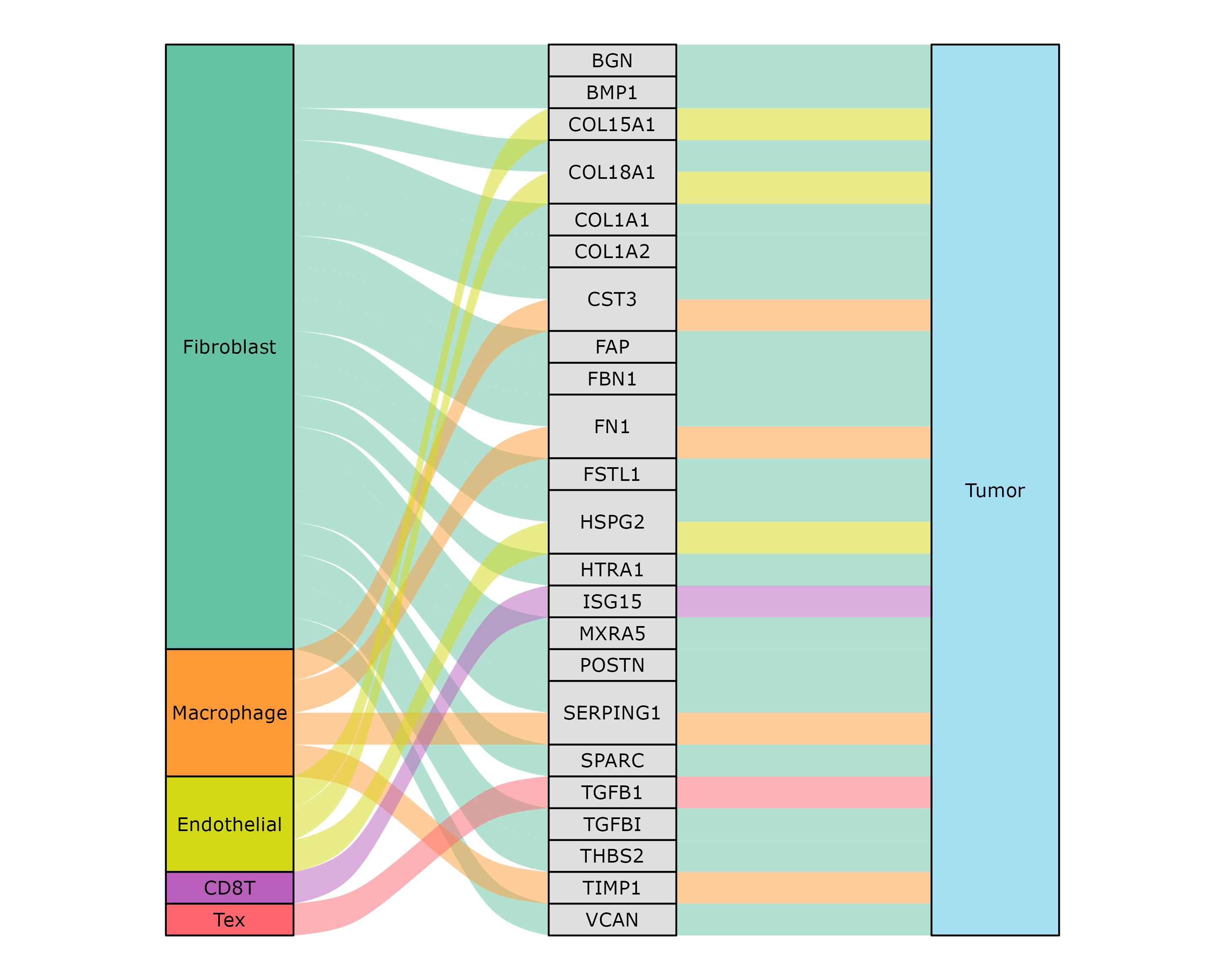

User can select the cell-cell communication of interest from Seurat_obj @misc $SecAct_output $SecretedProteinCCC to visualize them using SecAct.CCC.sankey. You need to assign values to sender, secretedProtein, and receiver.

sender <- c("Fibroblast","Macrophage","Endothelial","CD8T","Tex")

secretedProtein <- c(
  "BGN","BMP1","COL15A1","COL18A1","COL1A1",
  "COL1A2","CST3","FAP","FBN1","FN1",
  "FSTL1","HSPG2","HTRA1","ISG15","MXRA5",
  "POSTN","SERPING1","SPARC","TGFB1","TGFBI",
  "THBS2","TIMP1","VCAN"
)

receiver <- c("Tumor")

SecAct.CCC.sankey(
  Seurat_obj,
  colors_cellType = my_cols,
  sender = sender,
  secretedProtein = secretedProtein,
  receiver = receiver
)
